MB SD Connect Compact 4 Star Diagnosis WIFI Setting Manual

We know The MB SD Connect Compact 4  can connecting with Both Lan cable and WIFI, some customers might have question and problem about how to setting WIFI.  Eobdtool.co.uk  share with you about WIFI setting on SD Connect C4

How to Setting MB SD Connect Compact 4 Star Diagnosis WIFI ？

Steps by steps instruction:

Click wireless network icon to select “View Available Wireless Network”.

Click “Refresh network list”.

Click “Change advanced settings”.

Select Wireless Network.

Tick on “Use Windows to configure my wireless network setting”.

Click Add.

Enter Network name..

Tick on “Connection even if this network is not broadcasting”

Cancel tick on “The key is provided for me automatically”.

Tick on “This is a computer-to-computer (ad hoc) network; wireless access points are not used”

Enter network key and confirm it. (network key: 26 a)

Go to Connection and tick on “correct when this internet is in range”, then click OK.

Enter the network key and click Connect.

Click the red circle in the menu bar.

Select Configuration and then click Yes.

Select MUX>> Register/Configure.

Select Encryption: WEP/Hex and enter the key (26 “a”s), then click Start.

Click OK.

Close Administration interface.

And you will see the network set just now is connected.

That’s all finished

If you have a MB SD Connect Compact 4 wanna setting wifi or do not know how to setting WIFI, please can following with this instructions, hope it would help you.

If you wanna USE SOFTWARE DIRECTLY , we recommend you buy the SD C4 plus DELL D630 Laptop package.

Download 2017.5 Xentry DAS for MB SD Connect (Good source, 100% works)

Multilanguage 2017.5 Xentry is confirmed to work with MB SD Connect 4 to cover the latest 12V/24V Mercedes Benz cars, buses, trucks, Sprints, Smart

(from 1989 to the 2017 year).

2017.5 Xentry DAS free download:

Not available yet, if yes, would like to share here.

Good source to download 2017.5 Xentry DAS:

Xentry 2017.5 in 256GB SSD running onDELL D630 (Win7 works)

Xentry 2017.5 in 500GB HDD running onDELL D630 (Win7 works)

Tips:

1) Don't download anything to the software, don't update anything of the software, otherwise the software will break down.

2) WIN7 does not support HHT-WIN! Post-2015.12 software cannot support HHT-WIN!

So far, Mercedes bus diagnosis & programming can be done via DAS only, NOT Xentry.

3)Once you take out software from laptop, it needs re-activation even if  you install it onto the same laptop.

The tested working APP with newest version and features (Confirmed)

D-A-S / Xentry 2017.05: the automatically Diagnosis Assistance System

Concise interface and straightforward operation with IB M high-quality computer can realize the quick and accurate code reading and the whole car system testing

W-I-S net 2017.01: Workshop Information System

Supply the whole view of the wiring diagram in a car,component location diagram and maintenance method. What you do is to enter the chassis number, and then you will get the manufacture data, engine configuration and the car model -all in detail.

EPC.net 2017.01: Electronic Parts Catalog

ST Finder: Part Location Finder options: 2008 and 2016

STARUTILITIES: the movement management system and self-test

SDMEDIA 2014

PL71: 2016 Mercedes software with PL70

D-A-S / Xentry 2017.05 functions works:

All electric system Diagnostic

Reading trouble code

Erasing trouble code

Live-data

Adaptation

Component testing

Maintenance

Information consultation

Component location diagram

Wiring diagram

Flash code- not work

D-A-S / Xentry 2017.05 works on multi-systems:

 ENGINE

AUTO-SPEED

AIRCONDITIONAL SYSTEM

SRS

ABS

ASR

MPL

GM

Bz ORIGINAL ANTI-THEFT

DASX SYSTEM

KEYZESS GO SYSTEM

OBD-II SYSTEM

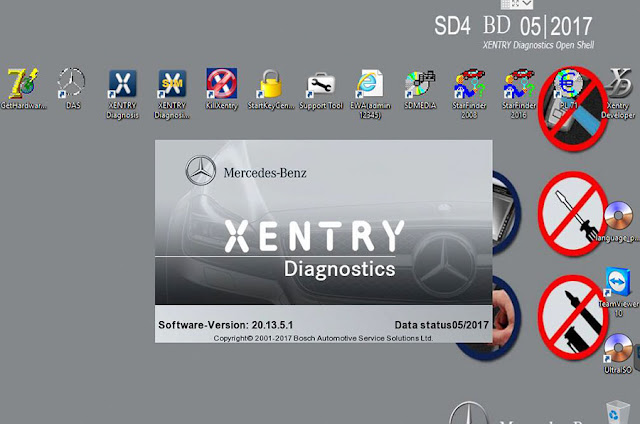

Seeing is believing, here attach operating pictures:

V2017.5 MB SD Connect Compact C4 DELL D630 Software HDD Support WIN7 System

Eobdtool.co.uk release a brand-new 500GB 2017.5 MB SD Connect Compact C4 Software HDD with DELL D630 Support WIN7 System


TOP 3 Reasons to buy V2017.5 MB SD C4 HDD:
1. D630 Interal HDD, it is plug and play version, no vmware need
The D630 HDD, as an internal HDD, only fits D630 laptops but runs much faster
The External HDD can be installed with any laptop with a USB 2.0 port.
2. WINDOWS system available: WINDOWS 7
3. Latest version: V2017.5

2017.05 software works with MB SD Connect Compact 4 for the latest Mercedes Benz cars and trucks. The new generation Star Diagnosis compact 4 is the latest Mercedes Benz diagnostic equipment on market for all MB vehicles, new and old.

Please Note: WIN7 does not support HHT-WIN! Post-2015.12 software cannot support HHT-WIN!
So far, Mercedes bus diagnosis & programming can be done via DAS only, NOT Xentry.

Software languages: English, Croatian, Czech, Danish, Dutch, Finish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Romanian, Russian, Spanish, Swedish & Turkish.

Update to 2017.5 version WIN7 32bit OS


V2017.5 MB SD C4 Software FUNCTIONS
1.1989~up to now Car, Bus, Truck, Sprint, Smart ;
2.All electric system Diagnostic;(Do not include flash code)
3.reading trouble code
4.erasing trouble code
5.live-data
6.adaptation
7.component testing
8.maintenance
9.information consultation
10.component location diagram
11.wiring diagram


Testable system:
ENGINE
AUTO-SPEED
AIRCONDITIONAL SYSTEM
SRS
ABS
ASR
MPL
GM
Bz ORIGINAL ANTI-THEFT
DASX SYSTEM
KEYZESS GO SYSTEM
OBD-II SYSTEM


MB SD C4 software includes: (Version: 2017 )
1. D-A-S / Xentry 2017.05: the automatically Diagnosis Assistance System
Concise interface and straightforward operation with IB M high-quality computer can realize the quick and accurate code reading and the whole car system testing
2. W-I-S net 2017.01: Workshop Information System
Supply the whole view of the wiring diagram in a car,component location diagram and maintenance method. What you do is to enter the chassis number, and then you will get the manufacture data, engine configuration and the car model -all in detail.
3. EPC.net 2017.01: Electronic Parts Catalog
4. ST Finder: Part Location Finder options: 2008 and 2016
5. STARUTILITIES : the movement management system and self-test
6. SDMEDIA 2014
7. PL71: 2016 Mercedes software with PL70


Packing including:
1pc x Newest 2017.5 MB STAR SD C4 Software HDD
